CenarioVR - Objects Overview

Updated: Sep 6

In this blog, I'll be giving you a brief overview of the variety of objects you can add to your CenarioVR scenarios.


A little about me: I'm an elearning developer for Transition Associates and Video Interact, and I have been working with CenarioVR since its beta launch in 2018. I have created courses for the fashion, health and safety, construction, automotive and healthcare industries with many more on the way.



Introduction


Objects can be added to your scene by selecting the ‘plus’ icon in the upper right of the screen. This will display a dropdown menu with the following objects available to select:

  1. Hotspot

  2. Question

  3. Info Card

  4. Audio

  5. Image

  6. Video

  7. Timer

  8. 3D Model

  9. Scene

  10. Timed Event


CenarioVR's object dropdown menu
CenarioVR's object dropdown menu

As well as this dropdown menu, you are also able to drag media directly onto the your scenario.


Dragging a media object into CenarioVR
Dragging a media object into CenarioVR

When you add an object to your scene, it will be listed under the your scene in the 'scene list' found to the left of the screen.


To edit an object's options, double click on the object in the scene, or select the 'edit' button in the scene list.


Edit object button in CenarioVR
Edit object button in CenarioVR


The following is a brief explanation of each object you can add into your scenario.



1. Hotspot


Hotspots are at the core of CenarioVR. They add interactivity and function to your scenes, giving you the option to do pretty much anything you could want inside of your scenario.


Hotspot options in CenarioVR
Hotspot options in CenarioVR

When you add a hotspot, you are asked to choose an 'image resource' to use as the hotspot's image. This can either be an image you have custom created, or it can be an image (or 3D model, which we will talk about further on) found in the 'media library'. You also have the option to make a hotspot 'transparent', which is great for hazard identification activities.


The 'media library' gives you access to a diverse library of pre-made imagery to help you get started with your hotspots. All of the imagery you find can have its colour customised to match your branding.


CenarioVR's media library
CenarioVR's media library

Hotspots themselves have 3 triggers:

  • On Select

  • On Hover

  • On Hover Out


Each of the above triggers can be customised with actions. A number of actions can be triggered via a hotspot, these include actions for:

  • Scenes

  • Object Actions

  • Audio, Video and Timers

  • Variables and Completion

  • Web


Full list of CenarioVR's actions
Full list of CenarioVR's actions

I will delve into the depths of actions in a future blog.


Other features of a hotspot include the ability to:

  • Alter the sound effects of the Hover In and Click trigger

  • Move the hotspot along a motion path

  • Fix the hotspot's position on the page (no matter where the user looks, the object will always be in front of them)

  • Turn the hotspot into an interactive (draggable) object, allowing you to create drag and drop activities

  • Turn the hotspot into a 3D model which the user can rotate and interact with

  • Initially hide the hotspot

  • Add an effect to spin the hotspot on its axis, as well as alter the opacity and give the hotspot a tooltip (a small label for the object)



2. Question


The question object allows you to add multiple choice questions to your scene.


Question in CenarioVR scene
Question in CenarioVR scene

When adding a question, you are immediately given the opportunity to change the question text and choices. You are able to add as many choice as you like (but I recommend you keep this a reasonable amount, around six or so, as a long list will look distorted within the scene).

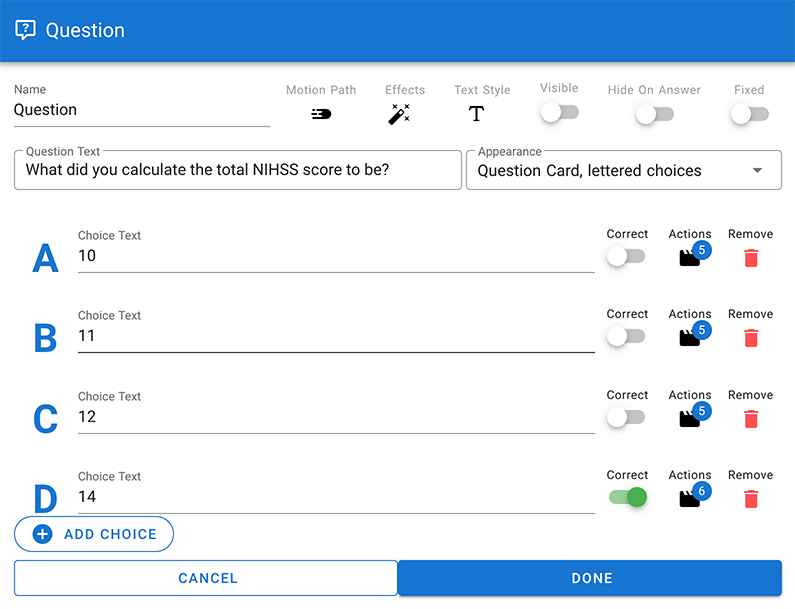

Question settings in CenarioVR
Question settings in CenarioVR

Scoring for the question is handled automatically - when the user chooses the 'correct' option, a score is added to CenarioVR's default scoring variable. If you would like to add custom scoring, use the actions found on each choice. These actions can be customised to anything you desire, for example, if I select choice A, I can add 5 to the score and show a tick image.


The appearance of the question can also be altered by using the 'appearance' dropdown menu. This allows you to change the lettering/number format for the choices, or remove this formatting altogether by having each choice in its own separate box.


Choice cards question appearance in CenarioVR
Choice cards question appearance in CenarioVR

You also have the ability to edit the text style of the question. This allows you to edit the font, text size, shape and colours of the question object.


Question text style options in CenarioVR
Question text style options in CenarioVR

Other features of a question include the ability to:

  • Move the question along a motion path

  • Fix the question's position on the page

  • Hide the question when it has been answered

  • Add an effect to spin the question on its axis, as well as alter the opacity and give the question a tooltip



3. Info Card


An info card is CenarioVR's terminology for a text box. In an info card you are able to add your own custom text and customise the style of this text.


Info card options in CenarioVR
Info card options in CenarioVR

Customising the style of the info card allows you to edit the:

  • Font

  • Text size

  • Box shape

  • Text justification

  • Colours

  • Opacity


Info card text style options in CenarioVR
Info card text style options in CenarioVR

The customisation options available for info cards are very limited at this moment in time, with some basic features missing. However, I have made a feature request with the CenarioVR development team to improve this (so feel free to vote for it!).


Other features of an info card include the ability to:

  • Move the info card along a motion path

  • Fix the info card's position on the page

  • Initially hide the info card

  • Add an effect to spin the info card on its axis, as well as alter the opacity and give the info card a tooltip



4. Audio


When you add audio to a scene, it can be:

  • Used in the background

  • Triggered via an action

  • Looped

  • Autoplayed

  • Set as spatial, meaning its sound originates from a position in the scene


Audio options in CenarioVR
Audio options in CenarioVR

Please note: CenarioVR currently only supports mp3 audio files.


If an audio object is not set to 'loop', you will have the option to add 'on done' actions to it. For example, after the narrator has finished his introduction, the user is taken to the next scene.


Other features of an audio object include the ability to:

  • Adjust volume of the audio. This is great for background music and you will want to reduce this to allow any speech to be clearly heard



5. Image


Adding an image does what it says on the tin. When you add an image object, you can:

  • Initially hide the image

  • Move the image along a motion path

  • Fixed the image in position

  • Animate the image with an effect to spin the image on its axis, as well as alter the opacity and give the image a tooltip


Image options in CenarioVR
Image options in CenarioVR

Tip: When you resize you image in the scene, you will find that it snaps to the size of other objects inside the scene. To stop this happening, hold the alt/option key on your keyboard as you resize the image (and any other object).


Resizing an image object in CenarioVR
Resizing an image object in CenarioVR


6. Video


This object is only for flat video footage, not 360 (360 footage is specifically for Scene objects, we will cover this later on). Adding a video to your scene places a flat video inside your 360 scene.


Video inside CenarioVR 360 scene
Video inside CenarioVR 360 scene

When adding a video object, you have the option to:

  • Loop the video

  • Autoplay the video

  • Fix the position of the video

  • Initially hide the video


Video options in CenarioVR
Video options in CenarioVR

Please note: CenarioVR currently only supports mp4 and m4v video files.


If your video is not looped, you can add an 'on done' action to it. For example, when the video finishes, hide the video and resume the scene.


Other features of a video object include the ability to:

  • Adjust the volume of the video

  • Add an effect to spin the video on its axis, as well as alter the opacity and give the video a tooltip



7. Timer


Timers are great to set time limits for activities, or just to let the user know how long a certain scene will be. I often find myself using timers to set time limits for hazard spotting exercises, for example, “Can you find all 5 hazards within the limit?”.


Timed hazard spotting activity Video Interact created for Fendi
Timed hazard spotting activity Video Interact created for Fendi

When you add a timer to a scene, you have the option to make it:

  • Autoplay

  • Fixed

  • Initially hidden


Timer options in CenarioVR
Timer options in CenarioVR

You are able to edit the style of the timer, altering the style, font, colours and whether the timer counts up or down.


Timer style options in CenarioVR
Timer style options in CenarioVR

In addition, sound can be added to timers to give them that authentic Countdown feel. The volume of the sound can be edited, much like the other objects that include sound.



8. 3D Model


3D objects are a great way to enhance that VR look and feel. Giving the user the chance to examine a 3D object from all angles in their own time is a much more engaging method than showing a flat image.


3D model of car in CenarioVR
3D model of car in CenarioVR

There are two ways you can give the user the ability to drag and rotate a 3D model:

  1. Add a hotspot, use a 3D model as the resource, turn on the interactive tab, then select ‘spin’ from the dropdown menu

  2. Add hotspots around the 3D model and add actions to animate the 3D model to spin on its X, Y or Z axis.


Hotspot with a 3D model as the image resource
Hotspot with a 3D model as the image resource

When you add a 3D model to a scene, it can be:

  • Fixed in position

  • Initially hidden


3D model options in CenarioVR
3D model options in CenarioVR

Please note, CenarioVR currently only supports glb files for 3D models.


Other features of a video object include the ability to:

  • Add a motion path to the 3D model

  • Add an effect to spin the 3D model on its axis, as well as alter the opacity and give the 3D model a tooltip



9. Scene


Adding a new scene gives you a new canvas to add your 360 awesomeness. This new scene will appear on the 'scene list' panel to the left.


Scene list (left side of screen) inside CenarioVR
Scene list (left side of screen) inside CenarioVR

Either a 360 video or a 360 image can be used to create a scene.


The duration of the scene will automatically match any video used. However, if you are using an image, you can customise the length of the scene. This allows you to still add timed actions to the scene even when it is a static image.


If the image or video isn’t looped, you are able to add 'on show' and 'on done' actions to the scene.


Scene options in CenarioVR
Scene options in CenarioVR

You are also able to set the initial orientation of the user for the scene. This can be done by pressing the ‘Set initial view’ button on the scene’s thumbnail.


'Set initial view' button in CenarioVR
'Set initial view' button in CenarioVR

You can edit your scene's properties any time by clicking the blue 'edit scene properties' button on the scene's thumbnail in the scene list.



10. Timed Event


Timed events allow you to trigger actions at certain points in the scene. They can be added via the objects dropdown menu, or by using the ‘add event at current time’ button found at the start of the timeline.


'Add event at current time' button in CenarioVR
'Add event at current time' button in CenarioVR

Once you add a timed event, you will be able to see them along your timeline.


Timed events on timeline in CenarioVR
Timed events on timeline in CenarioVR

To edit your timed event, you can click each red flag to edit the event’s name, trigger time and actions.


Timed event options in CenarioVR
Timed event options in CenarioVR


Summary


This has been a brief overview of the objects found in CenarioVR. Stay tuned for future posts on helpful tips and tricks for creating your 360 VR content.
